A2C53341464 A2C5329064080 03L130755AN

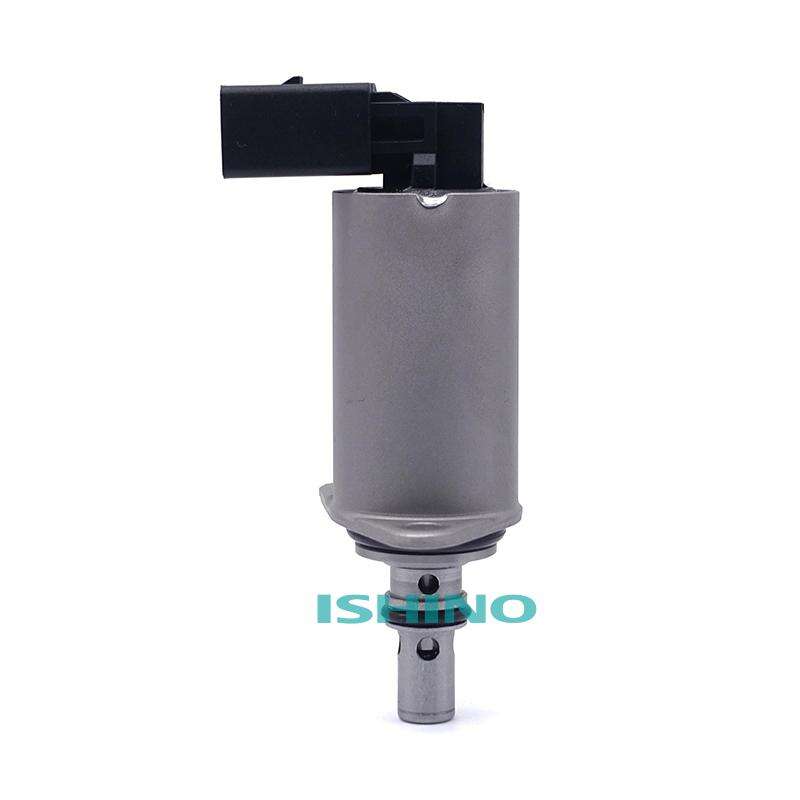

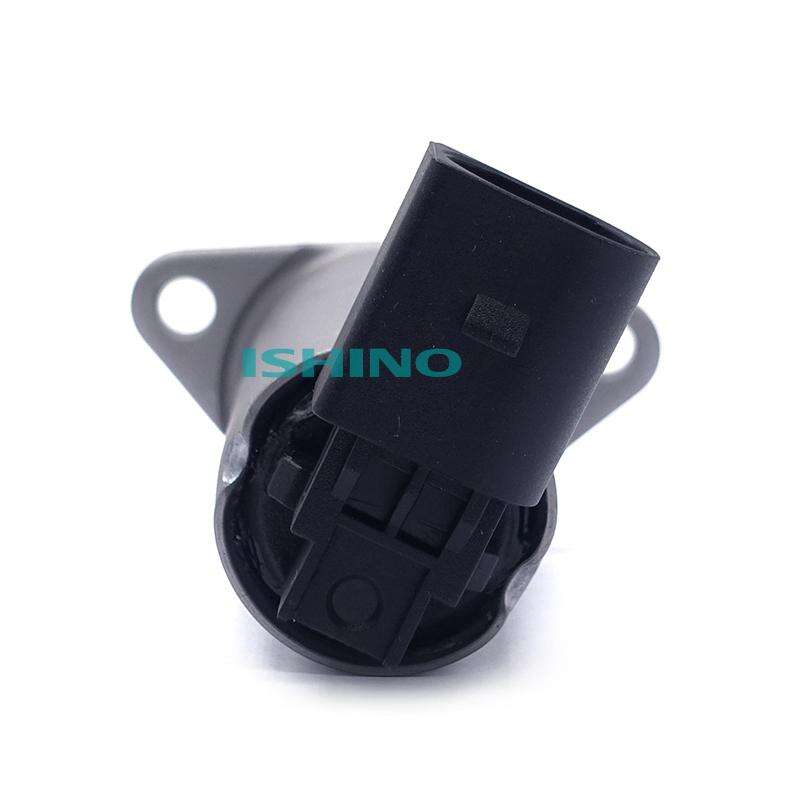

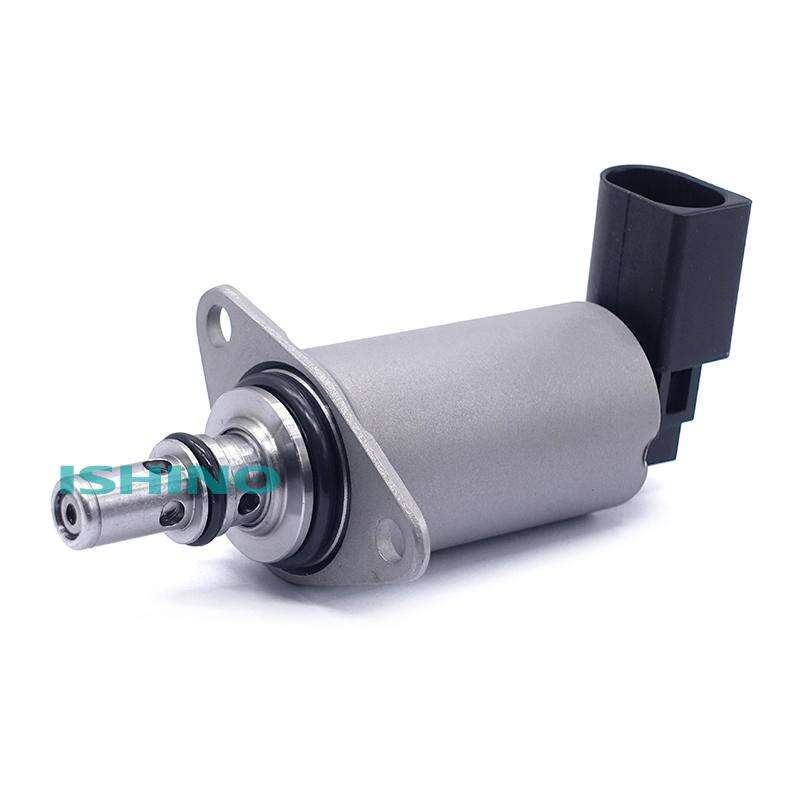

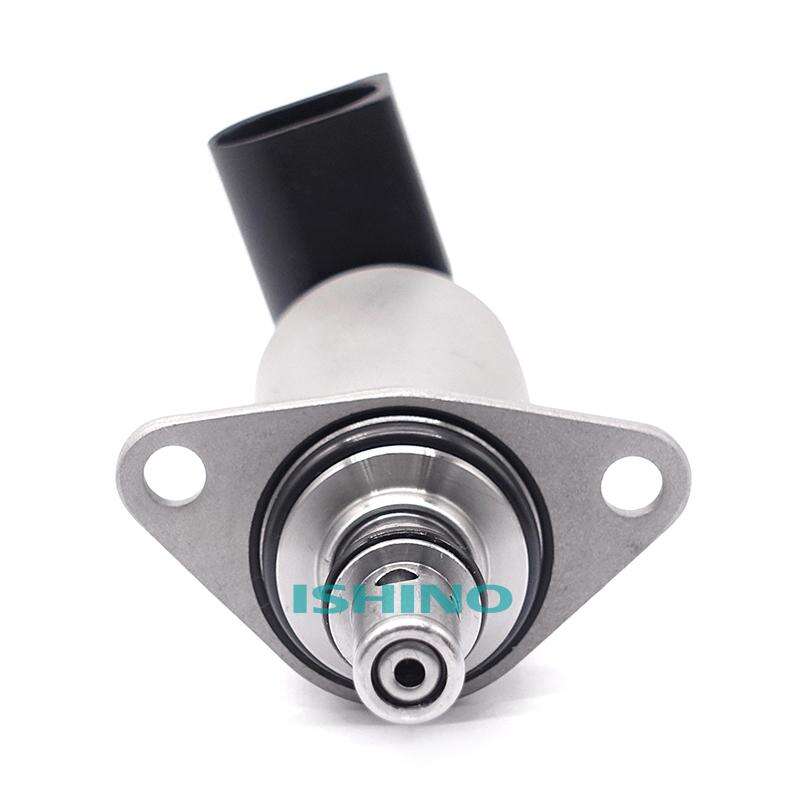

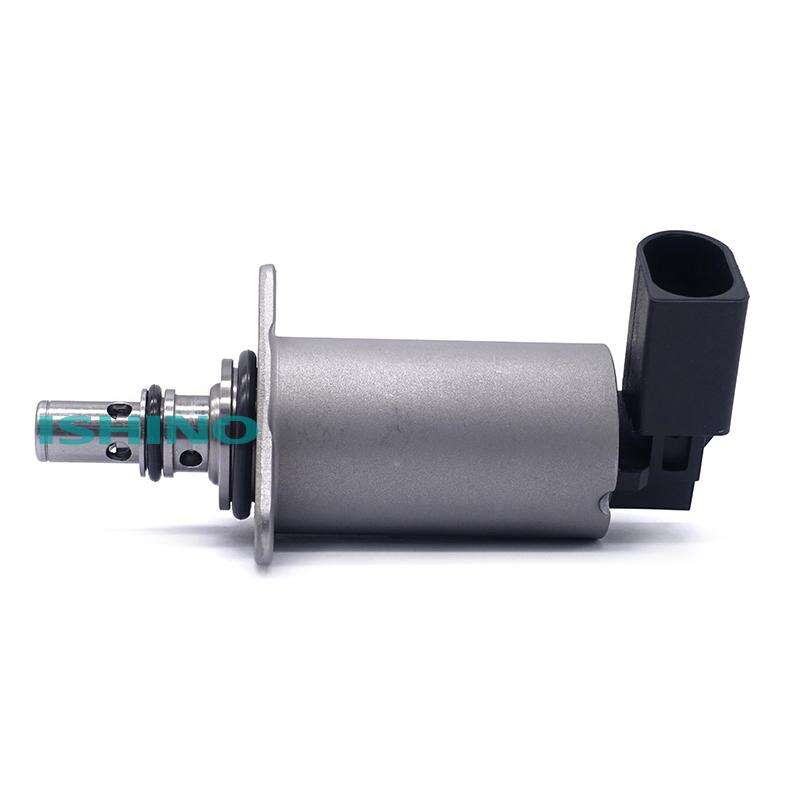

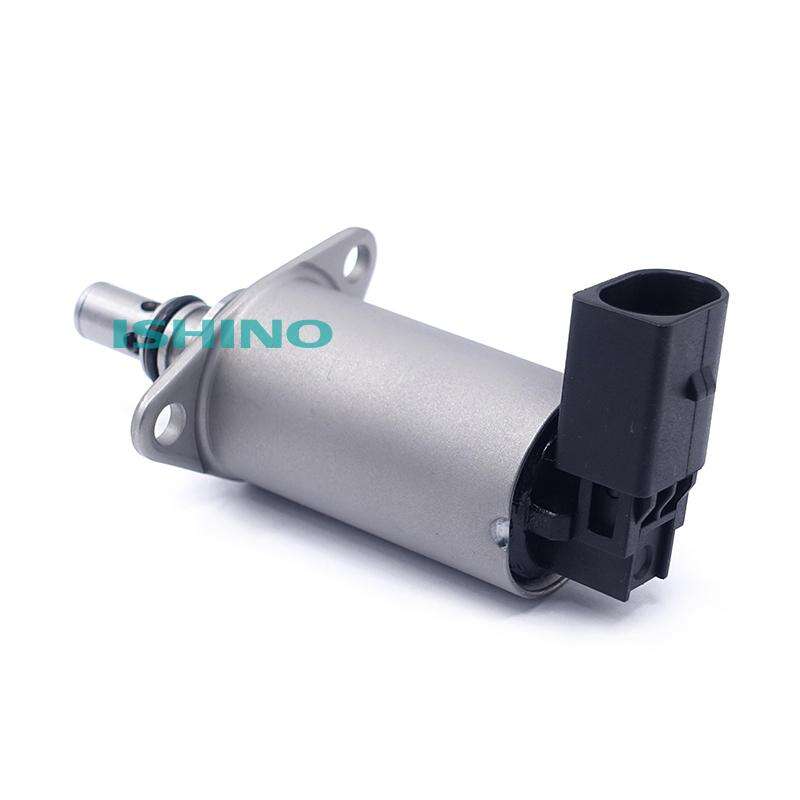

Common Rail Volumetric Control Valve (VCV)

The VCV (Volume Control Valve) is a key electronically controlled actuator in the high-pressure common rail diesel fuel system. It is primarily installed on the fuel inlet (low-pressure) side of the high-pressure fuel pump to regulate the amount of fuel entering the pump's compression chamber. By controlling the fuel delivery of the high-pressure pump, it enables precise regulation of the common rail pressure.

High Control Accuracy: Precisely regulates the fuel supplied to the high-pressure pump, minimizing common rail pressure fluctuations for more stable engine performance and improved fuel efficiency.

Fast Response: Responds rapidly to ECU commands with millisecond-level actuation, delivering better acceleration performance and smoother transitions under varying operating conditions.

Stable Flow Control: Maintains consistent fuel flow output across all operating conditions, ensuring stable idling and sufficient fuel supply under high-load operation.

High Pressure and High Temperature Resistance: Designed to withstand harsh engine operating conditions for extended service life and reliable long-term performance.

A2C5329064080

03L130755AN

5WS40836

5WS40891

A2C53341464

A2C53366731

8029825181

80298251

81731A2

Audi

Audi A3 3/5-Door (8P1) (Production: 05.2003 – 08.2012)

Audi A3 Sportback (8PA) (Production: 09.2004 – 03.2013)

Audi A3 Cabriolet (8P7) (Production: 04.2008 – 05.2013)

Audi A1 3/5-Door (8X1, 8XK) (Production: 05.2010 – 10.2018)

Audi A1 Sportback (8XA, 8XK) (Production: 09.2011 – 10.2018)

SEAT

SEAT Altea (5P1) (Production: 03.2004 – 12.2015)

SEAT Leon II 3/5-Door (1P1) (Production: 05.2005 – 12.2012)

SEAT Altea XL (5P5, 5P8) (Production: 10.2006 – 12.2015)

SEAT Ibiza IV 3/5-Door (6J5, 6P1) (Production: 03.2008 – 12.2017)

SEAT Ibiza IV SportCoupé (6J, 6P) (Production: 07.2008 – 12.2018)

SEAT Ibiza IV ST (6J8, 6P8) (Production: 03.2010 – 07.2016)

SEAT Toledo IV 3/5-Door (KG3) (Production: 07.2012 – 04.2019)

Škoda

Škoda Octavia II Hatchback (1Z3) (Production: 02.2004 – 06.2013)

Škoda Octavia II Estate (1Z5) (Production: 02.2004 – 06.2013)

Škoda Roomster (5J) (Production: 03.2006 – 05.2015)

Škoda Fabia II 3/5-Door (542) (Production: 12.2006 – 12.2014)

Škoda Fabia II Estate (545) (Production: 10.2007 – 12.2014)

Škoda Superb II Hatchback (3T4) (Production: 03.2008 – 05.2015)

Škoda Yeti (5L) (Production: 05.2009 – 12.2017)

Škoda Superb II Estate (3T5) (Production: 10.2009 – 05.2015)

Škoda Rapid 3/5-Door (NH3) (Production: 07.2012 – 03.2022)

Škoda Rapid Spaceback (NH1) (Production: 07.2012 – 12.2019)

Volkswagen

Volkswagen Caddy III Van (2KA, 2KH, 2CA, 2CH) (Production: 03.2004 – 05.2015)

Volkswagen Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) (Production: 03.2004 – 05.2015)

Volkswagen Golf Plus / CrossGolf (5M1, 521) (Production: 01.2005 – 12.2013)

Volkswagen Passat B6 Saloon (3C2) (Production: 03.2005 – 11.2010)

Volkswagen Passat B6 Estate (3C5) (Production: 08.2005 – 10.2011)

Volkswagen Golf VI 3/5-Door (5K1) (Production: 10.2008 – 11.2013)

Volkswagen Polo V 3/5-Door (6R1, 6C1) (Production: 06.2009 – 06.2022)

Volkswagen Golf VI Estate (AJ5) (Production: 07.2009 – 07.2013)

Volkswagen Golf VI Cabriolet (517) (Production: 03.2011 – 05.2016)

Volkswagen Beetle 3/5-Door (5C1, 5C2) (Production: 04.2011 – 07.2019)

Volkswagen Touran I (1T3) (Production: 05.2010 – 05.2015)

Volkswagen Beetle Cabriolet (5C7, 5C8) (Production: 12.2011 – 07.2019)

Volkswagen Caddy IV Estate (SAB, SAJ) (Production: 05.2015 – ...)

Volkswagen Caddy IV Van (SAA, SAH) (Production: 05.2015 – 12.2020)

Compatible Engines:

1.6 TDI, 1.6 TDI (4×4), 1.6 TDI 4Motion

Engine Output:

75–105 hp (55–77 kW)

Production Years:

2009–2020
