BK2Q-9358-AB 5WS40696

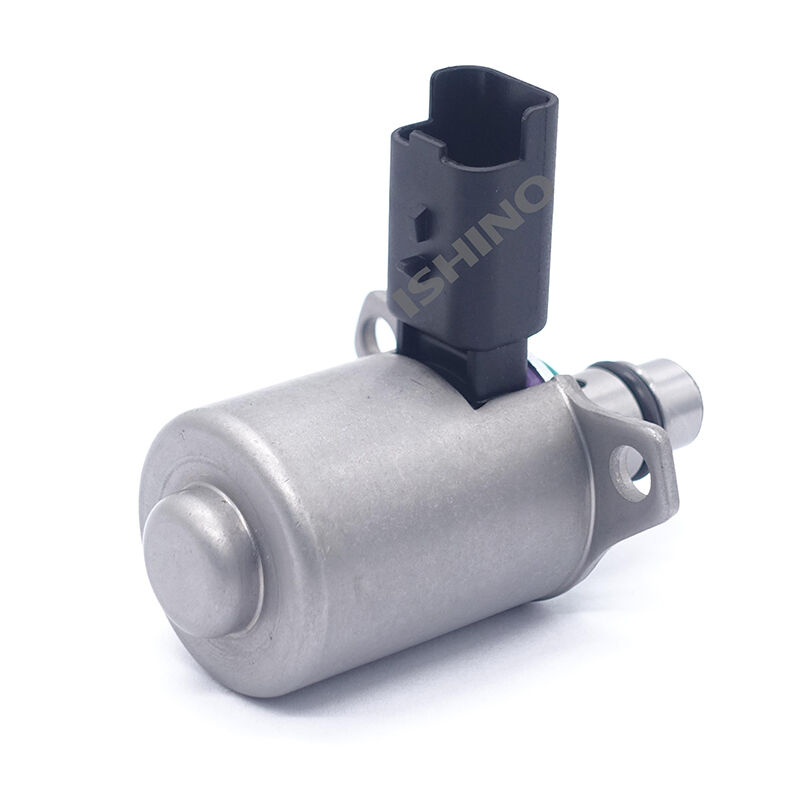

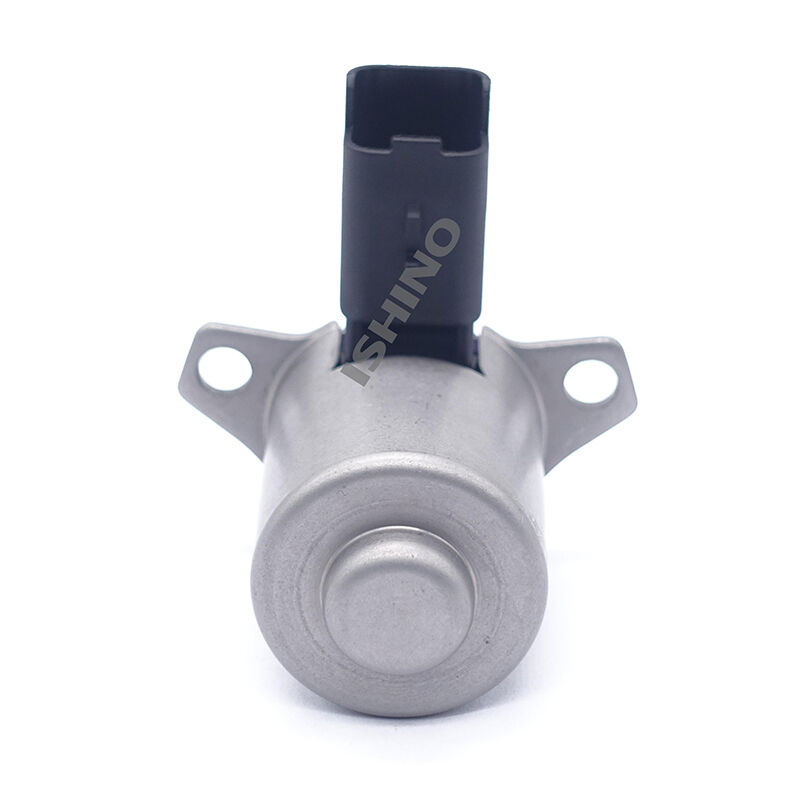

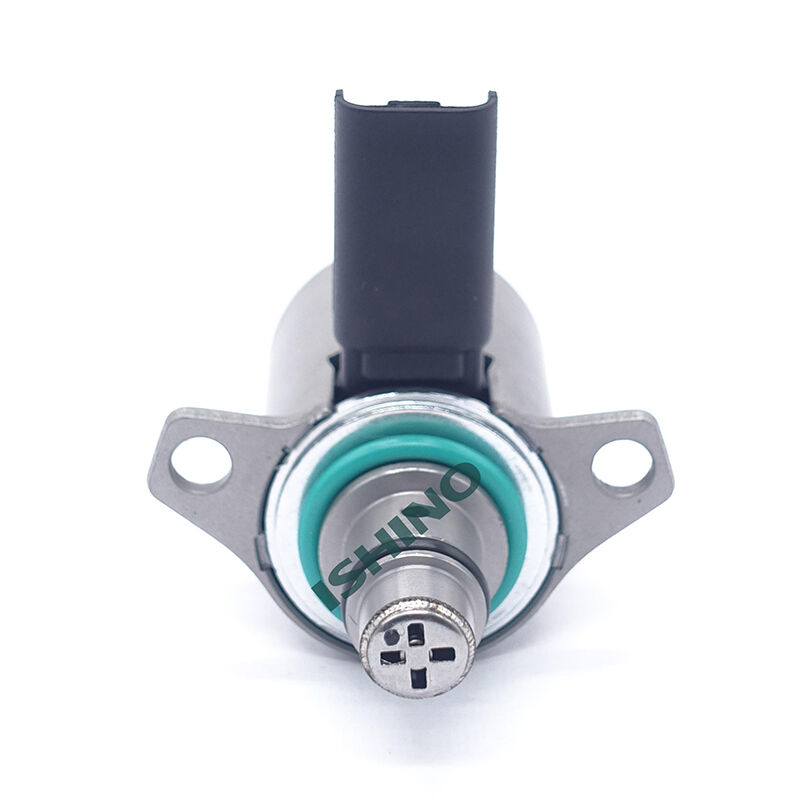

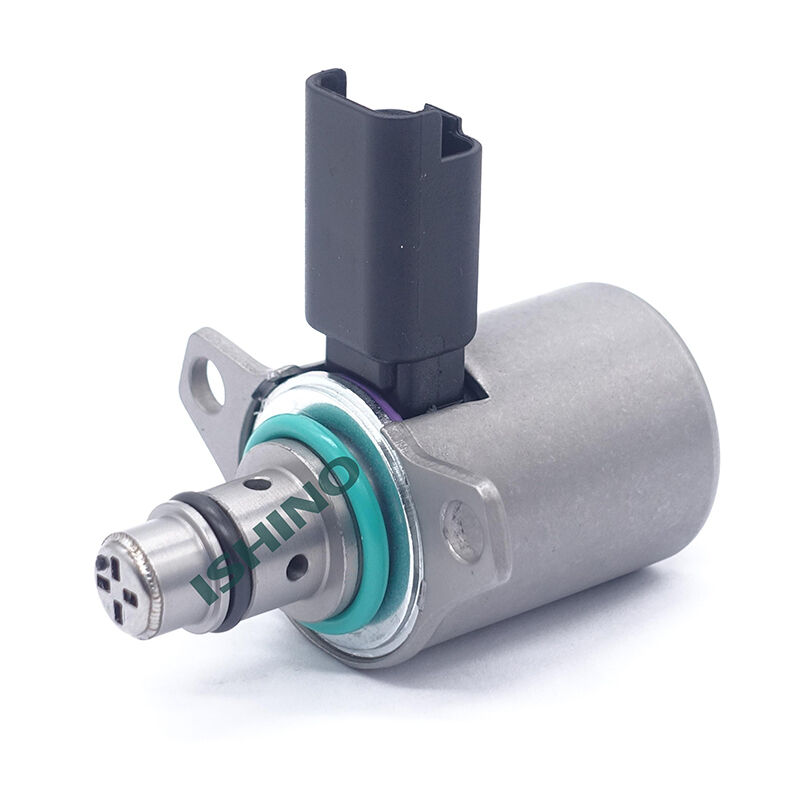

Common Rail Volumetric Control Valve (VCV)

The VCV (Volume Control Valve) is a key electronically controlled actuator in the high-pressure common rail diesel fuel system. It is primarily installed on the fuel inlet (low-pressure) side of the high-pressure fuel pump to regulate the amount of fuel entering the pump's compression chamber. By controlling the fuel delivery of the high-pressure pump, it enables precise regulation of the common rail pressure.

High Control Accuracy: Precisely regulates the fuel supplied to the high-pressure pump, minimizing common rail pressure fluctuations for more stable engine performance and improved fuel efficiency.

Fast Response: Responds rapidly to ECU commands with millisecond-level actuation, delivering better acceleration performance and smoother transitions under varying operating conditions.

Stable Flow Control: Maintains consistent fuel flow output across all operating conditions, ensuring stable idling and sufficient fuel supply under high-load operation.

High Pressure and High Temperature Resistance: Designed to withstand harsh engine operating conditions for extended service life and reliable long-term performance.

1945275

1793473

BK2Q-9358-AB

BK2Q-9358-AA

9805746880

5WS40696

Citroën

Citroën Jumper II Bus (250) (Production: 04.2006 – ...)

Citroën Jumper II Van (250) (Production: 04.2006 – ...)

Citroën Jumper II Platform/Chassis (250) (Production: 04.2006 – ...)

Ford

Ford Transit Mk6 Bus (V347, V348) (Production: 04.2006 – 12.2014)

Ford Transit Mk6 Van (V347, V348) (Production: 04.2006 – 12.2014)

Ford Transit Mk6 Platform/Chassis (V347, V348) (Production: 04.2006 – 08.2014)

Ford Transit Mk6 Tourneo (Production: 07.2006 – 08.2014)

Ford Tourneo Custom V362 Bus (F3) (Production: 04.2012 – ...)

Ford Transit Custom V362 Van (FY, FZ) (Production: 04.2012 – ...)

Ford Transit Custom V362 Bus (F3) (Production: 04.2012 – ...)

Ford Transit Mk7 Bus (V363) (Production: 08.2013 – ...)

Ford Transit Mk7 Van (V363) (Production: 08.2013 – ...)

Ford Transit Mk7 Platform/Chassis (V363) (Production: 08.2013 – ...)

Peugeot

Peugeot Boxer Bus (250) (Production: 09.2005 – ...)

Peugeot Boxer Van (250) (Production: 04.2006 – ...)

Peugeot Boxer Platform/Chassis (250) (Production: 04.2006 – ...)

Compatible Engines:

2.2 HDi, 2.2 TDCi, 2.2 TDCi RWD, 2.2 TDCi (4×4), 2.2 TDCi Allrad, 2.2

Engine Output:

85–155 hp (63–114 kW)

Production Years:

2006–2026
