Application and Technical Analysis of the 4S7Q9B395AJ 4S7Q9B395AL Fuel Metering Valve in High-Pressure Common-Rail Diesel Engines

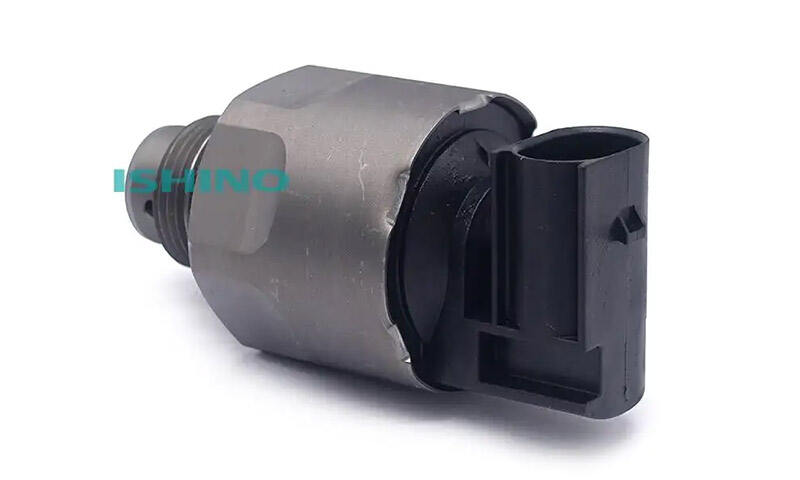

The 4S7Q9B395AJ 4S7Q9B395AL is a common fuel metering valve model used in common-rail systems for this displacement range; it is interchangeable with part numbers such as A2C20003757 and 5WS40157 and is frequently found in diesel-powered vehicles.

Installed on the inlet side of the high-pressure fuel pump, the valve uses electromagnetic actuation to regulate the volume of fuel entering the pump body, thereby enabling precise control of common-rail pressure.

When troubleshooting the 4S7Q9B395AJ 4S7Q9B395AL , it is essential to assess the overall operating condition of the high-pressure fuel pump.

If the volume control valve experiences wear or sticking, symptoms such as slow pressure build-up, increased pressure fluctuation, or failure to reach the target common-rail pressure may occur.

As this valve operates in conjunction with the 5WS40157 high-pressure pump body, the condition of the pump's plungers and outlet valves should be verified during replacement to prevent recurring faults caused by pump body wear.

The 4S7Q9B395AJ 4S7Q9B395AL functions by converting ECU control commands into precise fuel metering. Upon receiving a PWM signal, the internal electromagnetic coil generates the necessary electromagnetic force to move the valve spool, thereby adjusting the opening of the fuel passage.

The valve's flow characteristics are optimized to ensure sufficient fuel intake during high-demand operating conditions while preventing energy waste caused by over-supply.

The 4S7Q9B395AJ 4S7Q9B395AL is compatible with Land Rover, Range Rover Sport, and Jaguar models.

The diesel engines in these vehicles share a common fuel system architecture, utilizing high-pressure common-rail injection technology and featuring an inlet-side volume control valve.
