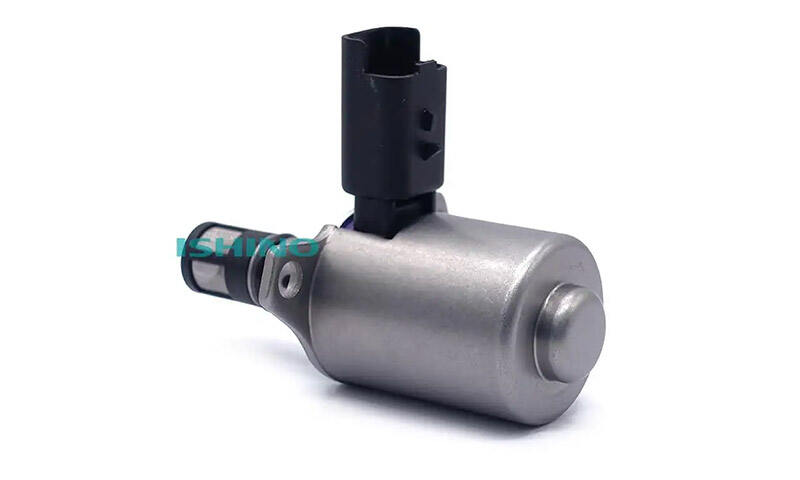

Analysis of Technical Characteristics and Maintenance Applications of the BK2Q9358AA Diesel Common Rail System Volume Control Valve

The BK2Q9358AA is a common volume control valve model used in common-rail systems, widely applied in the fuel supply systems of various diesel engines. Installed on the low-pressure inlet side of the high-pressure fuel pump, the valve utilizes an electromagnetic drive mechanism to control the opening of the metering unit; this regulates the volume of fuel entering the pump's compression chamber, thereby enabling precise control of common-rail pressure.

Structurally, the BK2Q9358AA employs electromagnetic actuation and features interface dimensions and mounting configurations compatible with standard diesel common-rail systems. The valve body houses an electromagnetic coil, an armature, and a valve spool assembly.

Upon receiving a control signal from the ECU, electromagnetic force drives the movement of the spool, altering the flow area and adjusting the fuel supply to the high-pressure pump. The valve body materials undergo special treatment to ensure stable performance under high-pressure and high-temperature conditions.

Technically, the BK2Q9358AA offers high control precision and rapid response capabilities. Upon receiving ECU commands, the volume control valve operates at millisecond speeds to precisely regulate fuel intake into the high-pressure pump, minimizing common-rail pressure fluctuations and ensuring a stable fuel supply across various operating conditions.

When engine speed or load changes, the valve rapidly adjusts the metering unit's flow area, working in tandem with the fuel pump to maintain stable rail pressure. This characteristic is particularly crucial for maintaining idle stability and ensuring reliable fuel supply during high-load operations. The valve also demonstrates stable flow control capabilities, maintaining consistent fuel flow output across diverse operating scenarios.

Regarding application compatibility, the BK2Q9358AA is widely used in diesel engines across multiple vehicle platforms. This model is interchangeable with part numbers such as LR086861, 1793473, and 1945275. It is also commonly found in diesel-powered systems requiring precise fuel metering within the commercial vehicle and construction machinery sectors.

Its compatibility covers a range of engine displacements, meeting the fuel supply requirements of diesel engines across various power ratings. Installation must be performed by qualified personnel, ensuring the fuel system is clean to prevent impurities from interfering with valve operation.

Regarding maintenance and troubleshooting, common issues associated with the BK2Q9358AA include increased rail pressure fluctuations, unstable idling, sluggish acceleration, and diagnostic trouble codes indicating rail pressure control deviations. If the volume control valve sticks or exhibits sluggish response, the ECU cannot precisely regulate the fuel flow into the high-pressure fuel pump, causing the common rail pressure to deviate from the target value.

Diagnosis can be performed by comparing actual common rail pressure readings against target values to assess the valve's operational status. When replacing the valve, it is essential to verify the cleanliness of the fuel system and simultaneously service the fuel filter to extend the new valve's service life. Under normal operating conditions, the valve is designed to withstand the high-temperature environment of the engine bay and offers a long service life.
