A6860VM09A 1460A037

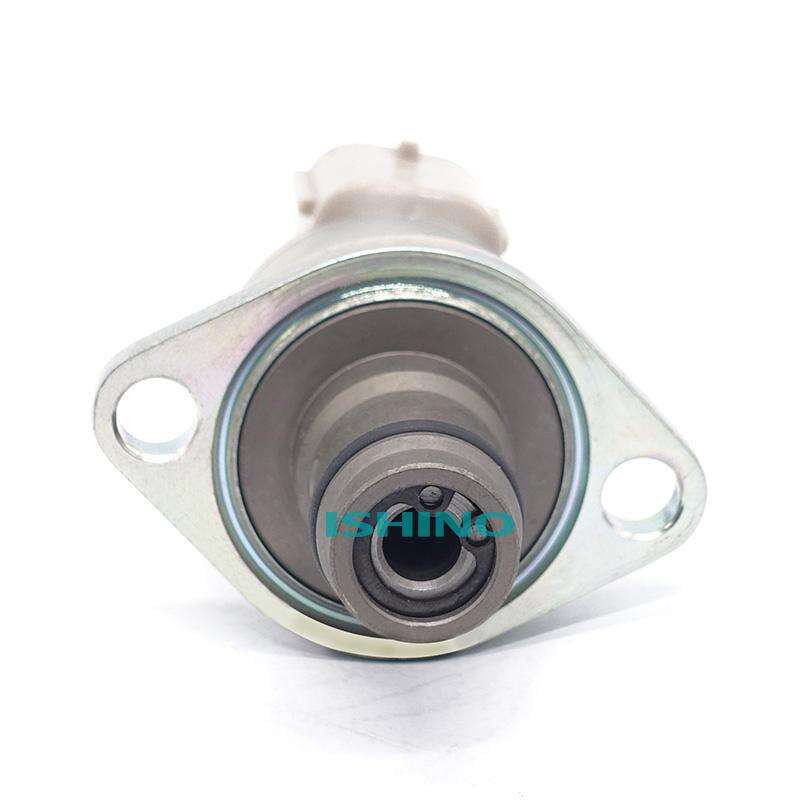

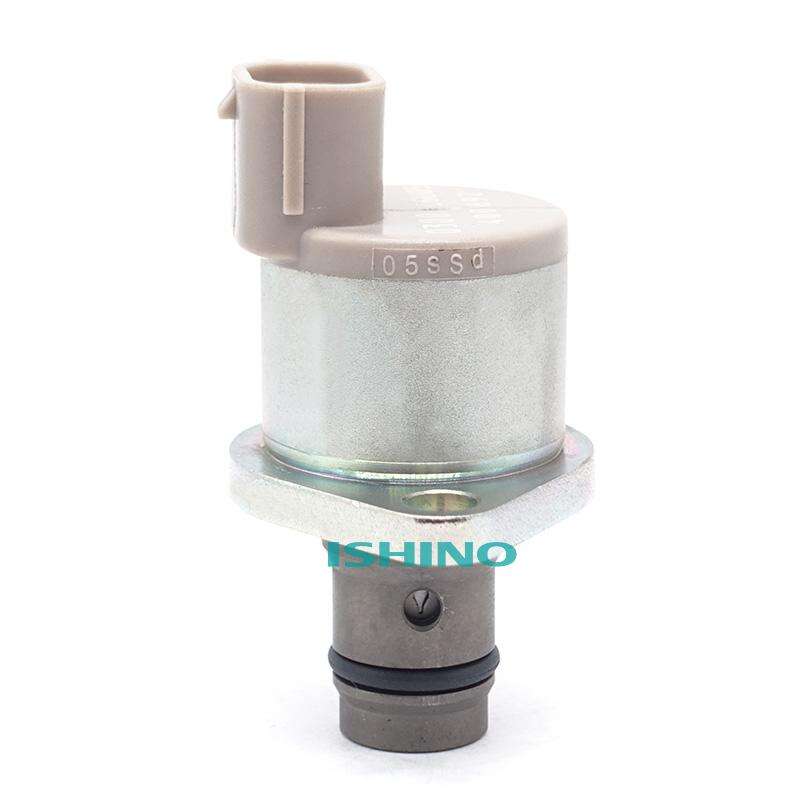

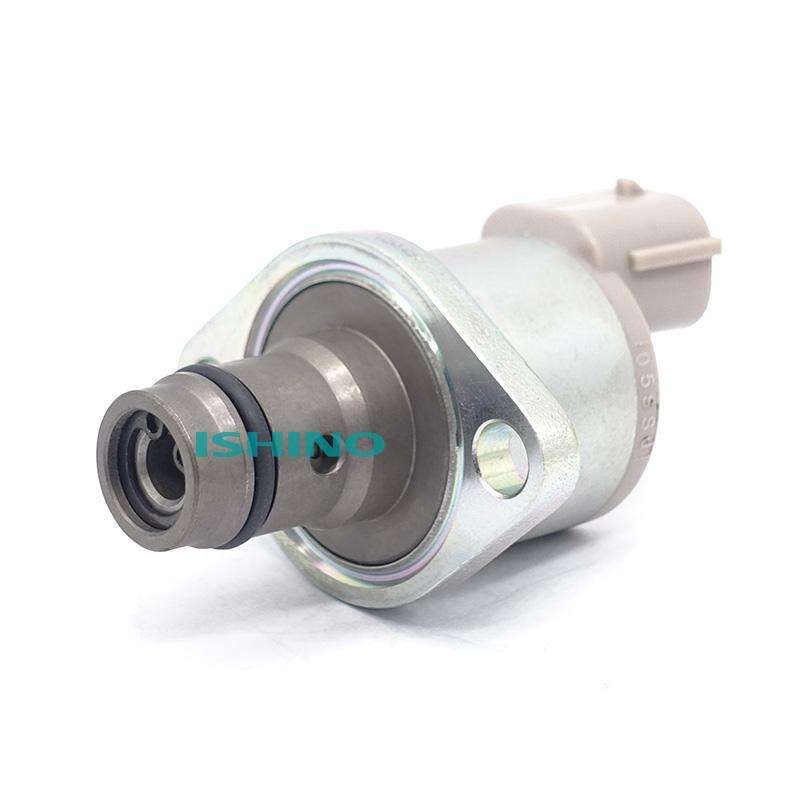

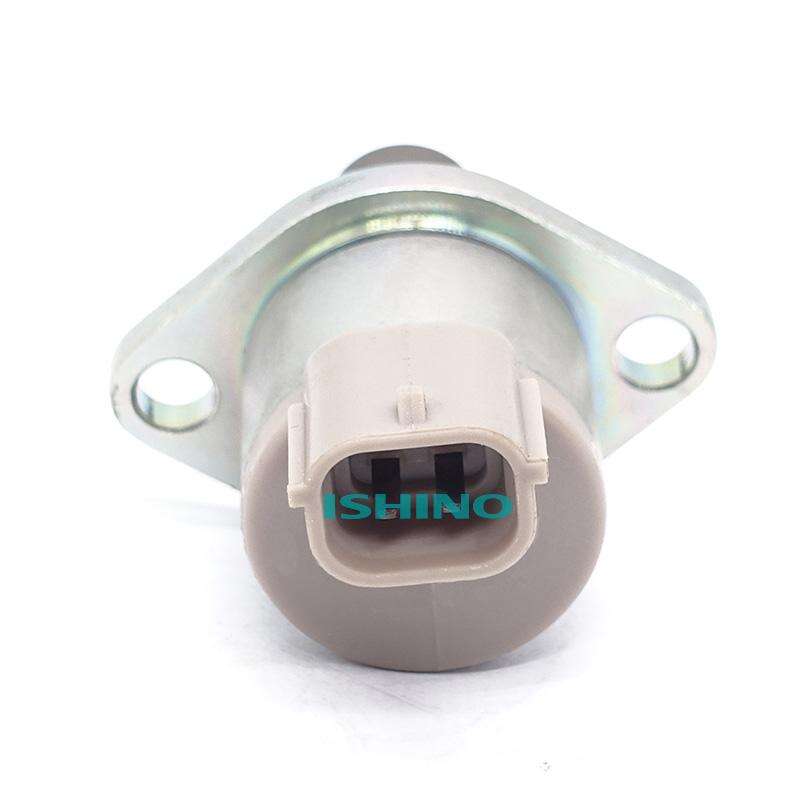

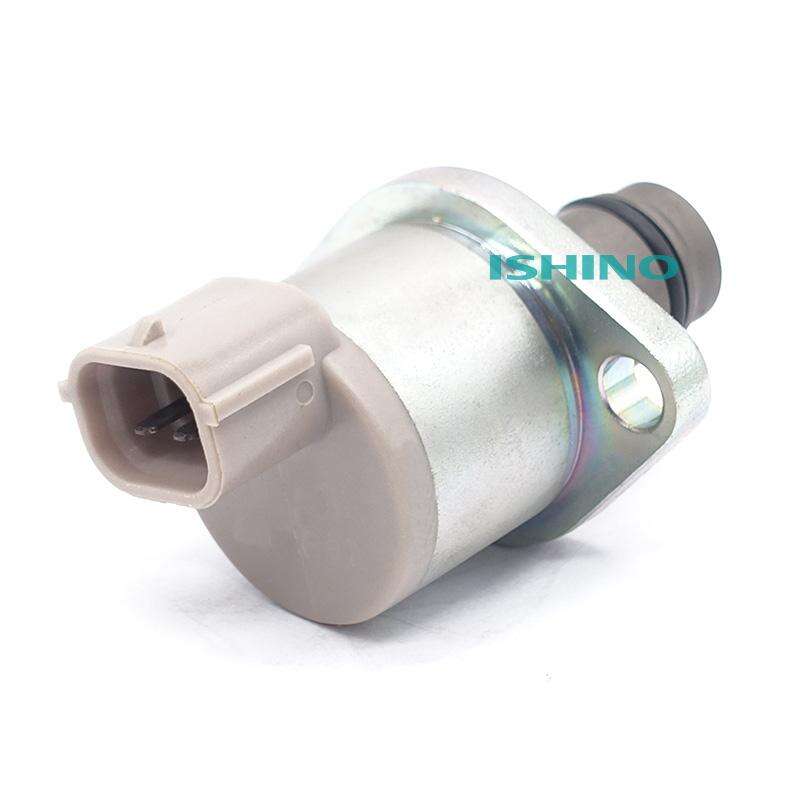

The Common Rail Suction Control Valve (SCV) is a proportional solenoid valve installed on the suction side of the high-pressure fuel pump in diesel common rail systems. It is controlled by the ECU via a PWM signal to regulate the valve opening, thereby precisely controlling the fuel flow entering the high-pressure pump and achieving accurate closed-loop control of common rail pressure.

Its core function is demand-based fuel supply with fast response, stable rail pressure, reduced energy consumption, improved combustion efficiency, and enhanced engine performance, fuel economy, and emissions control. In modern diesel common rail systems, the SCV is an essential component for achieving efficient and low-emission fuel management.

High-precision flow control — Precisely regulates fuel flow to ensure stable rail pressure.

Fast dynamic response — Rapid response to ECU commands across all operating conditions.

Stable and reliable operation — Maintains consistent fuel delivery and improves engine smoothness.

Excellent environmental adaptability — Resistant to high temperature, high pressure, and wear under harsh conditions.

OE-level manufacturing quality — Precision engineering and strict testing ensure stable and reliable performance.

1920.QK

A6860-EC09A

A6860-VM09A

1460A037

1460A031

Citroën

Citroën Jumper II Minibus (250) (Production: 04.2006 – ...)

Citroën Jumper II Van (250) (Production: 04.2006 – ...)

Citroën Jumper II Chassis Cab (250) (Production: 04.2006 – ...)

Fiat

Fiat Ducato III Minibus (250, 290) (Production: 07.2006 – ...)

Fiat Ducato III Van (250, 290) (Production: 07.2006 – ...)

Fiat Ducato III Chassis Cab (250, 290) (Production: 07.2006 – ...)

Ford

Ford Transit Mk6 Minibus (V347, V348) (Production: 04.2006 – 12.2014)

Ford Transit Mk6 Van (V347, V348) (Production: 04.2006 – 12.2014)

Ford Transit Mk6 Chassis Cab (V347, V348) (Production: 04.2006 – 08.2014)

Ford Transit Mk6 Tourneo (Production: 07.2006 – 08.2014)

Isuzu

Isuzu D-Max I Pickup (TFR, TFS) (Production: 05.2002 – 06.2012)

Land Rover

Land Rover Defender SUV Convertible (L316) (Production: 08.1990 – 02.2016)

Land Rover Defender SUV (L316) (Production: 08.1990 – 02.2016)

Land Rover Defender Pickup (L316) (Production: 10.1995 – 02.2016)

Land Rover Defender Chassis Cab (L316) (Production: 09.1990 – 02.2016)

Mitsubishi

Mitsubishi L200 / Triton IV Pickup (KA, KB) (Production: 01.2004 – 12.2016)

Mitsubishi Pajero IV (V80) (Production: 11.2006 – ...)

Nissan

Nissan Pathfinder III (R51) (Production: 01.2005 – ...)

Nissan NP300 Navara Pickup (D40) (Production: 10.2004 – ...)

Nissan NP300 Navara Chassis Cab (D40) (Production: 08.2008 – ...)

Peugeot

Peugeot Boxer Minibus (250) (Production: 09.2005 – ...)

Peugeot Boxer Van (250) (Production: 04.2006 – ...)

Peugeot Boxer Chassis Cab (250) (Production: 04.2006 – ...)

Compatible Engines:

2.0 DI-D, 2.2, 2.2 HDi, 2.2 HDi 4×4, 2.2 TDCi, 2.2 TDCi RWD, 2.2 TDCi 4×4, 2.4 TDCi, 2.4 TDCi RWD, 2.4 TDCi 4×4, 2.4 TD4 4×4, 2.5 D 4×4, 2.5 dCi 4×4, 2.5 DI-D, 2.5 DI-D 4×4, 3.0 DiTD 4×4, 3.2 DI-D, 3.2 TDCi, 3.2 TDCi RWD

Engine Output:

85–200 hp (63–147 kW)

Production Years:

2005–2026
