Upgrade of Diesel Common-Rail Fuel Supply Logic A Brief Analysis of the 9307Z523B Fuel Inlet Metering Valve

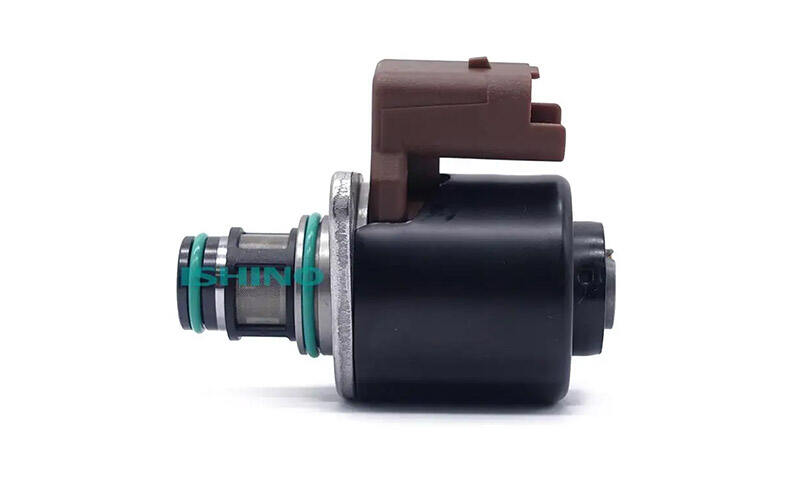

Rail pressure control in diesel high-pressure common-rail systems is achieved through two main methods: relieving pressure by returning fuel from the high-pressure side, or using an Inlet Metering Valve (IMV) at the low-pressure inlet of the high-pressure fuel pump to control fuel intake at the source. The 9307Z523B IMV is precisely this type of upstream flow control component. Mounted on the low-pressure inlet side of the high-pressure fuel pump, it precisely meters the fuel entering the pump and works with the electronic control system to establish a closed-loop common-rail pressure regulation mechanism.

The IMV is an ECU-driven proportional solenoid valve controlled by PWM (Pulse Width Modulation) signals. The engine's electronic control unit (ECU) continuously monitors operating parameters such as engine speed, load, and rail pressure, outputting PWM signals with specific duty cycles to adjust the valve spool opening and regulate the fuel flow into the high-pressure pump. This upstream flow regulation method eliminates the need to continuously vent high-pressure fuel, resulting in lower system energy consumption and more stable, economical operation of the entire fuel injection management system.

A primary advantage of the 9307Z523B IMV is its high-precision metering control. As engine operating conditions shift and fuel demand changes, the valve adjusts fuel flow in real-time to maintain stable pressure within the common rail. Stable rail pressure ensures consistent fuel atomization and more complete combustion, thereby reducing unnecessary fuel consumption and lowering exhaust emissions.

Rapid response capability is crucial when dealing with dynamic conditions such as sudden load changes or rapid acceleration. Upon receiving adjustment commands from the ECU, the 9307Z523B IMV quickly adjusts the flow rate with excellent responsiveness. Whether during idling, mid-speed driving, or heavy-load operation, the valve maintains a stable flow output, optimizing engine smoothness and mitigating issues such as vibration or fluctuating power delivery.

The harsh environment of a diesel engine compartment—characterized by high temperatures, high pressures, and continuous fuel flow—places rigorous demands on the durability of the valve. The 9307Z523B fuel inlet metering valve (IMV) features targeted material and structural enhancements, offering high-temperature, high-pressure, and wear resistance suitable for harsh operating conditions. Manufactured and tested to OE standards and subjected to rigorous performance validation, the valve ensures stable long-term operation; it minimizes issues such as spool sticking and metering inaccuracies, thereby safeguarding the reliable performance of the high-pressure common rail system.
