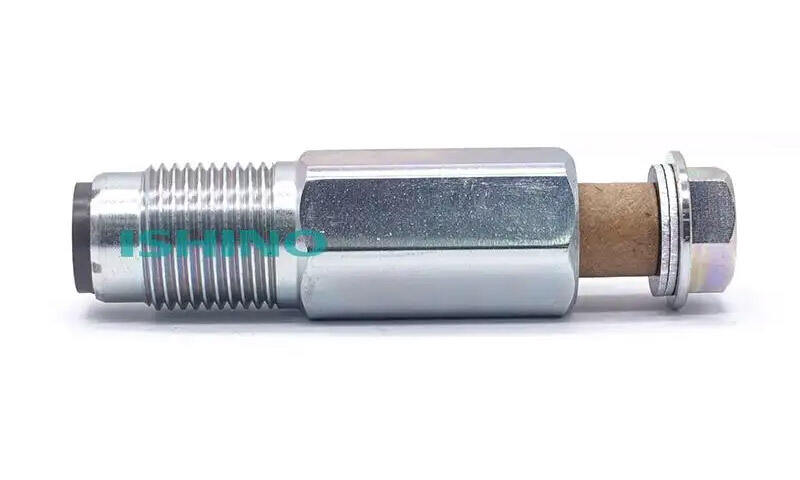

RE516335 Common Rail Pressure Relief Valve A core safety device for overpressure protection in diesel common rail systems.

In diesel high-pressure common-rail fuel systems, maintaining high rail pressure is crucial for ensuring injection precision and combustion efficiency; however, abnormal pressure spikes pose a significant, often hidden, risk of damage to the engine's fuel system. Issues such as transient overloads, electronic control faults, fuel line blockages, or sudden changes in operating conditions can cause pressure within the common-rail pipe to exceed safe thresholds, leading to severe failures like injector damage, rail deformation, or high-pressure fuel line rupture. As the sole safety pressure-relief component in the fuel system, the common-rail pressure relief valve (PRV) performs the critical functions of pressure limiting, relief, and stabilization, making it an indispensable safety component for diesel engines.

The RE516335 PRV is specifically engineered for high-pressure common-rail systems; featuring OEM-standard specifications, it comprehensively meets the pressure-relief and protection needs of construction machinery, agricultural equipment, and commercial diesel-powered machinery.

Based on the operating principles of common-rail systems, the RE516335 PRV is typically installed at the end of the common-rail line, where it continuously monitors the system's maximum operating pressure. The valve features a preset safety pressure threshold; during normal engine operation, it remains fully sealed—preventing leaks or pressure loss—thereby maintaining constant internal rail pressure to ensure stable injection, uniform fuel atomization, and smooth power output. Should an anomaly occur—such as a sudden spike in rail pressure exceeding the preset safety limit—the PRV automatically opens to rapidly divert excess high-pressure fuel back to the low-pressure circuit. This forces a drop in system pressure, effectively eliminating the risk of equipment damage caused by overpressure at the source.

Precise pressure-relief protection is the core advantage of the RE516335 PRV. With its accurately calibrated pressure threshold, the valve avoids issues such as premature or accidental pressure relief—which could otherwise lead to power loss or increased fuel consumption—as well as the risk of failure to act during overpressure events, thereby ensuring precise control over the system's safe pressure limits. The valve body features ultra-fast response capabilities; it opens to relieve pressure the instant an overpressure event occurs, rapidly eliminating pressure spikes. This maximizes protection for critical, high-value components—such as the common rail, high-pressure fuel lines, fuel injectors, and the fuel pump—thereby significantly reducing the likelihood of major engine overhauls and lowering maintenance costs.

Engineered to withstand the harsh operating conditions of diesel engines—characterized by high temperatures, high pressures, and high-frequency pressure shocks—the RE516335 common rail pressure relief valve (PRV) is constructed from high-strength, wear-resistant materials. It offers exceptional resistance to heat, pressure, fatigue, and wear, enabling it to endure the impact of high-pressure fuel and the high-temperature environment of the engine bay over the long term without succumbing to issues such as seal degradation, valve body deformation, or pressure relief failure. Manufactured to strict OE standards and subjected to rigorous pressure calibration, sealing, and durability impact testing, the product delivers consistent performance and reliable quality, ensuring long-term protection and safety for high-pressure common rail systems.
